ديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|

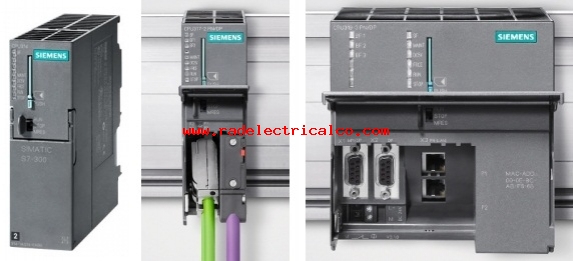

1
|
CPU 312
|
6ES7312-1AE13-0AB0
|
SIMATIC S7-300, CPU 312 CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY 32 KBYTE WORKING MEMORY MICRO MEMORY CARD NECESSARY
|
|
2
|
CPU 312C
|
6ES7312-5BE03-0AB0
|
SIMATIC S7-300, CPU 312C COMPACT CPU WITH MPI, 10 DI/6 DO, 2 FAST COUNTERS (10 KHZ), INTEGRATED 24V DC POWER SUPPLY, 32 KBYTE WORKING MEMORY, FRONT CONNECTOR (1 × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
3
|
CPU 313C
|
6ES7313-5BF03-0AB0
|
SIMATIC S7-300, CPU 313C COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO 1 PT100, 3 FAST COUNTERS (30 KHZ), INTEGRATED 24V DC POWER SUPPLY, 64 KBYTE WORKING MEMORY, FRONT CONNECTOR (2 × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
4
|
CPU 313C-2DP
|
6ES7313-6CF03-0AB0
|
SIMATIC S7-300, CPU 313C-2DP COMPACT CPU WITH MPI, 16 DI/16 DO, 3 FAST COUNTERS (30 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 64 KBYTE WORKING MEMORY, FRONT CONNECTOR (1 × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
5
|
CPU 314
|
6ES7314-1AG13-0AB0
|
SIMATIC S7-300, CPU 314 CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY96 KBYTE WORKING MEMORY MICRO MEMORY CARD NECESSARY
|
|
6
|
CPU 314C-2DP
|
6ES7314-6CG03-0AB0
|
SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 96KBYTE WORKING MEMORY, FRONT CONNECTOR ( × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
7
|
CPU 315-2DP
|
6ES7315-2AG10-0AB0
|
SIMATIC S7-300, CPU 315-2DP CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY 128 KBYTE WORKING MEMORY 2 INTERFACE DP-MASTER/SLAVE MICRO MEMORY CARD NECESSARY
|
|
8
|
CPU 315-2PN-DP
|
6ES7315-2EH13-0AB0
|
SIMATIC S7-300 CPU 315-2 PN/DP, CENTRAL PROCESSING UNIT WITH 256 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY
|
|
9
|
CPU315F-2 PN/DP
|
6ES7315-2FH13-0AB0
|
SIMATIC S7-300 CPU315F-2 PN/DP, CENTRAL PROCESSING UNIT WITH 256 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFCE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY USEABLE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.4 OR HIGHER
|
|
10
|
CPU 315T-2 DP
|
6ES7315-6TH13-0AB0
|
SIMATIC S7-300, CPU 315T-2 DP, CENTRAL PROCESSING UNIT FOR PLC AND TECHNOLOGY 128 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S 2. INTERFACE DP(DRIVE) INTEGRATED I/O FOR TECHNOLOGY FRONT CONNECTOR (1 × 40PIN) AND
|
|
11
|
CPU 315F
|
6ES7315-6FF01-0AB0
|
SIMATIC S7-300, CPU 315F CENTRAL UNIT FOR S7-300F, 192 KB WORKING MEM., 40MM WIDE, 384 BYTES PAE/384 BYTES PAA, INTERFACES: 1 MPI/DP UND 1 DP INTEGRATED 24V DC POWER SUPPLY, MICRO MEMORY CARD REQUIRED
|
|
12
|
CPU 317-2DP
|
6ES7317-2AJ10-0AB0
|
SIMATIC S7-300, CPU 317-2DP, CENTRAL PROCESSING UNIT WITH 512 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, MICRO MEMORY CARD NECESSARY
|
|
13
|
CPU 318-2 DP
|
6ES7318-2AJ00-0AB0
|
SIMATIC S7-300, CPU 318-2 DP 512 KBYTE USER MEMORY (256 KB CODE; 256 KB DATA 1ST INTERF = MPI 12 MBIT/S; 2ND INTERF = PROFIBUS DP
|
|
14
|
CPU 317-2PN-DP
|
6ES7317-2EK13-0AB0
|
SIMATIC S7-300 CPU 317-2 PN/DP, CENTRAL PROCESSING UNIT WITH 1MB WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY
|
|
15
|
CPU 317T-2 DP
|
6ES7317-6TK13-0AB0
|
SIMATIC S7-300, CPU 317T-2 DP, CENTRAL PROCESSING UNIT FOR PLC AND TECHNOLOGY 512 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S 2. INTERFACE DP(DRIVE), INTEGRATED I/O FOR TECHNOLOGY FRONT CONNECTOR (1 × 40PIN) AND MICRO MEMORY CARD MIN. 4MB NECESSARY
|
|
16
|
CPU 317F-2DP
|
6ES7317-6FF03-0AB0
|
SIMATIC S7-300, CPU 317F-2DP, CENTRAL PROCESSING UNIT WITH 1024 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFWARE OPTION S7 DISTRIBUTED SAFETY V5.2 SP1 AND HIGHER
|
|
17
|
CPU317F-2 PN/DP
|
6ES7317-2FK13-0AB0
|
SIMATIC S7-300 CPU31F-2 PN/DP, CENTRAL PROCESSING UNIT WITH 1024 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.4 OR HIGHER
|
|
18
|
CPU319-3 PN/DP
|
6ES7318-3EL00-0AB0
|
SIMATIC S7-300 CPU 319-3 PN/DP, CENTRAL PROCESSING UNIT WITH 1,4 MBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, 3. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY
|
|
19
|
CPU319F-3 PN/DP
|
6ES7318-3FL00-0AB0
|
SIMATIC S7-300 CPU319F-3 PN/DP, CENTRAL PROCESSING UNIT WITH 1400 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, 3. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.4 SP3 OR HIGHER
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کارت ورودي 16 تايي ديجيتال (SM 321)
|
6ES7321-1BH02-0AA0
|
SIMATIC S7-300, DIGITAL INPUT SM 321, OPTICALLY ISOLATED, 16DI, 24 V DC, 20 PIN
|
|
2
|
کارت ورودي 32 تايي ديجيتال (SM 321)
|
6ES7321-1BL00-0AA0
|
SIMATIC S7-300, DIGITAL INPUT SM 321, OPTICALLY ISOLATED 32DI, 24 V DC (1 × 32 DI), 40 PIN
|
|
3
|
کارت خروجي 8 تايي ديجيتال (SM 322)
|
6ES7322-1BF01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 8 DO, 24V DC, 2A, 20 PIN
|
|
4
|
کارت خروجي 16 تايي ديجيتال (SM 322)
|
6ES7322-1BH01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 16 DO, 24V DC, 0.5A, 20 PIN
|
|
5
|
کارت خروجي 32 تايي ديجيتال (SM 322)
|
6ES7322-1BL00-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 32 DO, 24V DC, 0.5A, 40 PIN, SUM OF OUTPUT CURRENTS 8A
|
|
6
|
کارت خروجي 8 تايي رله (SM 322)
|
6ES7322-1HF01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 8 DO (RELAY OUTPUTS), 20 PIN, 24V DC, 2A OR 230V AC, 2A
|
|
7
|
کارت خروجي 16 تايي رلهاي (SM 322)
|
6ES7322-1HH01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED 16DO, RELAY CONTACTS, (2 × 8 DO) 20 PIN
|
|
8
|
کارت خروجي 8 تايي رلهاي (SM 322)
|
6ES7322-5HF00-0AB0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت 8 ورودي/8 خروجي ديجيتال (SM 323)
|
6ES7323-1BH01-0AA0
|
SIMATIC S7-300, DIGITAL MODULE SM 323, OPTICALLY ISOLATED, 8 DI AND 8 DO, 24V DC, 0.5A AGGREGATE CURRENT 2A, 20 PIN
|
|
10
|
کارت 16 ورودي/16 خروجي ديجيتال (SM 323)
|
6ES7323-1BL00-0AA0
|
SIMATIC S7-300, DIGITAL MODULE SM 323, OPTICALLY ISOLATED, 16 DI AND 16 DO, 24V DC, 0.5A, AGGREGATE CURRENT 4A, 40 PIN
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کارت 2 ورودي آنالوگ (SM 331)
|
6ES7331-7KB02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 2 AI, 9/12/14 BITS RESOLUTION, U/I/THERMOCOUPLE/RESISTANCE, INTERRUPT, DIAGNOSTICS, 20 PIN, REMOVE/INSERT W. BACKPLANE BUS
|
|
2
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-1KF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, 66 MS MODULE UPDATE, 40 PIN
|
|
3
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7KF02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, U/I/THERMOCOUPLE/RESISTANCE INTERRUPT, DIAGNOSTICS; RESOLUTION 9/12/14 BITS, 8AI, REMOVE/INSERT W. BACKPLANE BUS, 20 PIN
|
|
4
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPT. ISOL.,2/3/4 WIRE, 8AI, RESISTANCE, PT100/200/1000 NI100/120/200/500/1000, CU10, PLUS CHARACTERISTICS ACCORDING TO GOST STANDARD 16 (INTERN 24) BIT, 50MS, 40 PIN
|
|
5
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF11-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATATED, 8 AI THERMOCOUPLE, TYPE B, E, J, K, L, N, R, S, T 16 BIT, 50 MS, 40 PIN
|
|
6
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7HF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, GALVANICALLY ISOLATED, 8 AI, 14 BIT, 0.052MS/CHANNEL, CURRENT, VOLTAGE, INTERRUPTS, DIAGNOSTICS, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR
|
|
7
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF00-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AE; +/-5/10V, 1-5 V, +/-20MA, 0/4 TO 20MA, 16 BIT (55 MS), 1 COMMON POINT(50 V COM.), 40 PIN
|
|
8
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF10-0AB0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7332-7ND02-0AB0
|
SIMATIC S7, SM 332 ANALOG OUTPUT CHANNEL TO CHANNEL ISOLATION, 4 AO, 16 BIT RESOLUTION, 0-10V, 1-5V, +/- 10V, +/-20MA, 0/4 - 20MA, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR ISOCHRONE MODE
|
|
10
|
کارت 2 خروجي آنالوگ (SM 332)
|
6ES7332-5HB01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 2 AO, U/I; 11/12 BITS RESOL., 20 PIN., REMOVE/INSERT WITH ACTIVE BACKPLANE BUS
|
|
11
|
کارت 4 خروجي آنالوگ (SM 332)
|
6ES7332-5HD01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 4 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 20 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
12
|
کارت 8 خروجي آنالوگ (SM 332)
|
6ES7332-5HF00-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
13
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0CE01-0AA0
|
SIMATIC S7, ANALOG INPUT/OUTPUT SM 334, NON-ISOLATED, 4 AI/2 AO, 20-POLIG, REMOVE AND INSERT WITH BACKPLAIN BUS
|
|
14
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0KE00-0AB0
|
SIMATIC S7-300, ANALOG MODULE SM 334, OPTICALLY ISOLATED, 4AE/2AA, 12 BIT, 0-10V F. PT100 (CLIMAT RANGE - 120 - 155 DEGR) AND 10 KOHM MEASURING RANGE, 20 PIN
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کارت 2 ورودي آنالوگ (SM 331)
|
6ES7331-7KB02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 2 AI, 9/12/14 BITS RESOLUTION, U/I/THERMOCOUPLE/RESISTANCE, INTERRUPT, DIAGNOSTICS, 20 PIN, REMOVE/INSERT W. BACKPLANE BUS
|
|
2
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-1KF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, 66 MS MODULE UPDATE, 40 PIN
|
|
3
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7KF02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, U/I/THERMOCOUPLE/RESISTANCE INTERRUPT, DIAGNOSTICS; RESOLUTION 9/12/14 BITS, 8AI, REMOVE/INSERT W. BACKPLANE BUS, 20 PIN
|
|
4
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPT. ISOL.,2/3/4 WIRE, 8AI, RESISTANCE, PT100/200/1000 NI100/120/200/500/1000, CU10, PLUS CHARACTERISTICS ACCORDING TO GOST STANDARD 16 (INTERN 24) BIT, 50MS, 40 PIN
|
|
5
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF11-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATATED, 8 AI THERMOCOUPLE, TYPE B, E, J, K, L, N, R, S, T 16 BIT, 50 MS, 40 PIN
|
|
6
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7HF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, GALVANICALLY ISOLATED, 8 AI, 14 BIT, 0.052MS/CHANNEL, CURRENT, VOLTAGE, INTERRUPTS, DIAGNOSTICS, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR
|
|
7
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF00-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AE; +/-5/10V, 1-5 V, +/-20MA, 0/4 TO 20MA, 16 BIT (55 MS), 1 COMMON POINT(50 V COM.), 40 PIN
|
|
8
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF10-0AB0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7332-7ND02-0AB0
|
SIMATIC S7, SM 332 ANALOG OUTPUT CHANNEL TO CHANNEL ISOLATION, 4 AO, 16 BIT RESOLUTION, 0-10V, 1-5V, +/- 10V, +/-20MA, 0/4 - 20MA, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR ISOCHRONE MODE
|
|
10
|
کارت 2 خروجي آنالوگ (SM 332)
|
6ES7332-5HB01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 2 AO, U/I; 11/12 BITS RESOL., 20 PIN., REMOVE/INSERT WITH ACTIVE BACKPLANE BUS
|
|
11
|
کارت 4 خروجي آنالوگ (SM 332)
|
6ES7332-5HD01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 4 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 20 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
12
|
کارت 8 خروجي آنالوگ (SM 332)
|
6ES7332-5HF00-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
13
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0CE01-0AA0
|
SIMATIC S7, ANALOG INPUT/OUTPUT SM 334, NON-ISOLATED, 4 AI/2 AO, 20-POLIG, REMOVE AND INSERT WITH BACKPLAIN BUS
|
|
14
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0KE00-0AB0
|
SIMATIC S7-300, ANALOG MODULE SM 334, OPTICALLY ISOLATED, 4AE/2AA, 12 BIT, 0-10V F. PT100 (CLIMAT RANGE - 120 - 155 DEGR) AND 10 KOHM MEASURING RANGE, 20 PIN
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
CP 340, RS232C INTERFACE
|
6ES7340-1AH02-0AE0
|
SIMATIC S7-300, CP 340 COMMUNICATION PROCESSOR WITH RS232C INTERFACE (7.24) INCL. CONFIG. PACKAGE ON CD
|
|
2
|
CP 340, RS422/485 INTERFACE
|
6ES7340-1CH02-0AE0
|
SIMATIC S7-300, CP 340 COMMUNICATION PROCESSOR WITH RS422/485 INTERFACE INCL. CONFIG. PACKAGE ON CD
|
|
3
|
CP 341, RS232C INTERFACE
|
6ES7341-1AH01-0AE0
|
SIMATIC S7-300, CP 341 COMMUNICATION PROCESSOR WITH RS232C INTERFACE (7.24) INCL. CONFIG. PACKAGE ON CD
|
|
4
|
CP 341, RS422/485 INTERFACE
|
6ES7341-1CH01-0AE0
|
SIMATIC S7-300, CP 341 COMMUNICATION PROCESSOR WITH RS422/485 INTERFACE INCL. CONFIG. PACKAGE ON CD
|
|
5
|
کارت شبکه CP 342, AS-INTERFACE
|
6GK7343-2AH01-0XA0
|
SIMATIC NET, CP 343-2 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 AND ET200M TO AS-INTERFACE ACC. TO EXTENDED AS-INTERFACE MASTER PROFILE M0E/M1E. (W/O FRONT CONNECTOR)
|
|
6
|
کارت شبکه CP 342-5, PROFIBUS-DP
|
6GK7342-5DA02-0XE0
|
SIMATIC NET, CP 342-5 COMMUNICATIONS PROCESSOR FOR CONNECTING SIMATIC S7-300 TO PROFIBUS, DP, S5-COMPATIBLE PG/OP AND S7 COMMUNICATION
|
|
7
|
کارت شبکه CP 343-5, PROFIBUS-DP
|
6GK7343-5FA01-0XE0
|
SIMATIC NET, CP 343-5 COMMUNICATIONS PROCESSOR FOR CONNECTING SIMATIC S7-300 TO PROFIBUS, FMS, S5-COMPATIBLE PG/OP AND S7 COMMUNICATION 12 MBAUD, SINGLE-WIDTH
|
|
8
|
کارت شبکه CP 343-1, ETHERNET
|
6GK7343-1EX11-0XE0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت شبکه CP 343-1, ETHERNET
|
6GK7343-1EX21-0XE0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET VIA PROFINET IO CONTROLLEER, ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANS., MULTICAST LOADABLE COMMUNICATION BLOCS, SNMP DIAGNOSIS, INITIALIZATION VIA LAN DHCP, NTP-CPU SYNC, 10/100 MBIT, ONLY RJ45 CONNECTIONMBIT, ONLY RJ45 CONNECTION
|
|
8
|
کارت شبکه CP 343-1, ETHERNET
|
6GK7343-1EX30-0XE0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
10
|
کارت شبکه CP 343-1IT, ETHERNET
|
6GK7343-1GX21-0XE0
|
SIMATIC NET, CP 343-1IT COMMUNICATIONS PROCESSOR FOR CONNECTIING SIMATIC S7-300 TO IND. ETHERNET USING TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC, MULTICAST, HTML DIAGNOSIS, FTP CLIENT, PBK, NTP-CPU SYNC, SNMP, DHCP, E-MAIL, WWW,
|
|
11
|
MODBUS MASTER V3.1 WITH SW AND DOCU.
|
6ES7870-1AA01-0YA0
|
SIMATIC S7, MODBUS MASTER V3.1 SINGLE LICENSE F.1 INSTALLATION R-SW, SW AND DOCU. ON CD, HW-DONGLE, CLASS A, 3 LANGUAGES (G, E, F), EXECUTABLE U. STEP7 FROM V4.2, REFERENCE-HW: CP341 AND CP441-2
|
|
12
|
MODBUS SLAVE 73.1 ITH SW AND DOCU.
|
6ES7870-1AB01-0YA0
|
SIMATIC S7, MODBUS SLAVE V3.1 SINGLE LICENSE F.1 INSTALLATION R-SW, SW AND DOCU. ON CD, HW-DONGLE, CLASS A, 3 LANGUAGES (G, E, F), EXECUTABLE U. STEP7 FROM V4.2, REFERENCE-HW: CP341 AND CP441-2
|
|
13
|
IE SOFTNET-S7/2005
|
6GK1704-1CW64-3AA0
|
SIMATIC NET IE SOFTNET-S7/2005 SW F. S7, S5 COMP. COMMUN., OPC, PG/OP COMM., NCM PC, UP TO 64 C. SINGLE LICENSE F.1 INSTALLATION RT SW, SW + ELECTR. MANUAL ON CD LICENSE KEY ON FD, CLASS A, 2 LANG. (GER, EN); FOR 32 BITS WINDOWS XP PRO, 2000 PRO/SV, WINDOWS 2003 SERVER; FOR CP 1512 / CP 1612/ CP7515
|
|
14
|
PB SOFTNET-S7/2005
|
6GK1704-5CW64-3AA0
|
SIMATIC NET PB SOFTNET -S7 2005 SW F. S7 COMMUN. INCL. FDL W. OPC SERVER AND NCM PC; SINGLE LICENSE F.1 INSTALLATION RT SW, SW + ELECTR. MANUAL ON CD LICENSE KEY ON FD, CLASS A 2 LANG. (G, E); F. 32 BITS WIN XP PRO, 2000 PRO/SV; WIN 2003 SERVER; FOR CP5511/ CP5512/ CP5611
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
منبع تغذيه تکفاز 2A تيپ S7-300
|
6ES7307-1BA00-0AA0
|
SIMATIC S7-300, LOAD POWER SUPP. PS 307, 120/230 V AC, 24 V DC, 2 A
|
|
2
|
منبع تغذيه تکفاز 5A تيپ S7-300
|
6ES7307-1EA00-0AA0
|
SIMATIC S7-300, LOAD POWER SUPP. PS 307, 120/230 V AC, 24 V DC, 5 A
|
|
3
|
منبع تغذيه تکفاز 10A تيپ S7-300
|
6ES7307-1KA01-0AA0
|
SIMATIC S7-300, POWER SUPPLY PS 307, 120/230 V AC; 24 V DC, 10 A
|
|
4
|
منبع تغذيه تکفاز 5A. تيپ SITOP
|
6EP1331-2BA10
|
SITOP POWER STABILIYED LOAD POWER SUPPLY INPUT 120/230 VAC OUTPUT 24V DC 0.5A
|
|
5
|
منبع تغذيه تکفاز 2A تيپ SITOP
|
6EP1332-2BA10
|
SITOP POWER 2 STABILIZED LOAD POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/ 2 A DC
|
|
6
|
منبع تغذيه تکفاز و دو فاز 5A تيپ SITOP
|
6EP1333-3BA00
|
SITOP MODULAR STABILIZED LOAD POWER SUPPLY INPUT: 120 AC/230 - 500V OUTPUT: 24V DC/5 A
|
|
7
|
منبع تغذيه تکفاز 5A تيپ SITOP
|
6EP1333-2AA01
|
SITOP POWER 5 STABILIZED POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/ 5 A INDUSTRIAL VERSION
|
|
8
|
منبع تغذيه تکفاز و دو فاز 10A تيپ SITOP
|
6EP1334-3BA00
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
منبع تغذيه تکفاز 10A تيپ SITOP
|
6EP1334-2AA01
|
SITOP POWER 10 STABILIZED POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/ 10 A INDUSTRIAL VERSION
|
|
10
|
منبع تغذيه تکفاز 20A تيپ SITOP
|
6EP1336-3BA00
|
SITOP MODULAR STABILIZED LOAD POWER SUPPLY, INPUT: 120/230 V AC, OUTPUT: 24 V DC/20 A
|
|
11
|
منبع تغذيه سه فاز 20A تيپ SITOP
|
6EP1436-3BA00
|
SITOP MODULAR 20 STABILIZED LOAD POWER SUPPLY INPUT: 3-PH. 400-500V AC OUTPUT: 24V DC / 20 A
|
|
12
|
منبع تغذيه سه فاز 40A تيپ SITOP
|
6EP1437-3BA00
|
SITOP MODULAR 40 STABILIZED LOAD POWER SUPPLY INPUT: 3-PH. 400-500V AC OUTPUT: 24 V DC / 40 A
|
|
13
|
منبع تغذيه تکفاز 1.9A تيپ SITOP (15VDC)
|
6EP1351-1SH02
|
LOGO!POWER 15V STABILIZED POWER SUPPLY INPUT: 100-240 V AC OUTPUT: 15 V DC/ 1.9 A
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کابل شبکه PROFIBUS
|
6XV1830-0EH10
|
SIMATIC NET, PB FC STANDARD, BUS CABLE, 2-WIRE, SHIELDED, SPECIAL DESIGN FOR RAPID INSTALLATION, MAX. CONSIGNMENT: 1000 M, MIN. ORDERING QUANTITY: 20 M SOLD BY THE METER
|
|
2
|
باس کانکتور شبکه PROFIBUS يکطرفه 90 درجه
|
RES7972-0BA12-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 90 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 15,8 × 54 × 34 MM TERMINAT. RESIST. WITH ISOLAT. FUNCTION, WITHOUT PG SOCKET
|
|
3
|
باس کانکتور شبکه PROFIBUS يکطرفه 35 درجه
|
6ES7972-0BA41-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S WITH TILTED OUTGOING CABLE, (W × H × D): 16 × 54 × 34 MM TERMINAT. RESIST. WITH ISOLAT. FUNCTION, WITHOUT PG SOCKET
|
|
4
|
باس کانکتور شبکه PROFIBUS دوطرفه 90 درجه
|
6ES7972-0BB12-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 90 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 15.8 × 54 × 34 MM TERMINAT. RESIST. WITH ISOLAT. FUNCTION, WITH PG SOCKET
|
|
5
|
باس کانکتور شبکه PROFIBUS دوطرفه 35 درجه
|
6ES7972-0BB41-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S WITH TILTED OUTGOING CABLE, (W × H × D): 16 × 54 × 34 MM TERMINAT. RESIST. WITH ISOLAT. FUNCTION, WITH PG SOCKET
|
|
6
|
باس کانکتور شبکه PROFIBUS 90 درجه FAST CONNECT
|
6ES7972-0BA51-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 90 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 16 × 72; 7 × 34 MM IPCD TECHOLOGY FAST CONNECT, WITHOUT PG SOCKET
|
|
7
|
باس کانکتور شبکه PROFIBUS 90 درجه FAST CONNECT
|
6ES7972-0BB51-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 90 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 16 × 72,7 × 34 MM IPCD TECHOLOGY FAST CONNECT, WITH PG SOCKET
|
|
8
|
باس کانکتور شبکه PROFIBUS يک طرفه 35 درجه
|
6ES7972-0BA60-0XA0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
باس کانکتور شبکه PROFIBUS دوطرفه 35 درجه
|
6ES7972-0BB60-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 35 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 16 × 72.7 × 34 MM IPCD TECHOLOGY FAST CONNECT, WITH PG SOCKET
|
|
10
|
باس کانکتور شبکه PROFIBUS يک طرفه 180 درجه
|
6GK1500-0EA02
|
SIMATIC NET, PB BUS CONNECTOR WITH AXIAL CABLE OUTLET F.INDUSTR. PC, SIMATIC OP, OLM; TRANSMISSION RATE 12MBIT/S; TERMINATING RESISTOR WITH SEPAR. FUNCTION
|
|
11
|
باس کانکتور شبکه PROFIBUS يک طرفه 180 درجه
|
6GK1500-0FC00
|
SIMATIC NET, PB FC RS 485 PLUG 180, PB CONNECTOR W. FASTCONNECT CONNECTOR A. AXIAL CABLE OUTLET FOR INDUSTRIAL PC'S, SIMATIC OP, OLM, TRANSFER RATE 12 MBIT/S TERMINATING RESISTOR WITH SEPARAT. FUNCTION
|
|
12
|
کابل شبکه ETHERNET
|
6XV1840-2AH10
|
SIMATIC NET, IE FC TP STANDARD CABLE, TP INSTALLATION CABLE FOR CONNECTION TO FC OUTLET RJ45, FOR UNIVERSAL APPLICATION, 4-WIRE, SHIELDED, CAT. 5, SOLD BY THE METER MAX CONSIGNMENT: 1000 M, MIN. ORDERING QUANTITY: 20 M
|
|
13
|
باس کانکتور شبکه ETHERNET RJ45 PLUG 180
|
6GK1901-1BB10-2AA0
|
SIMATIC NET IE FC RJ45 PLUG 180 RJ45 PLUG CONNECTOR W. RUGGED METAL HOUSING AND FC CONNECTING METHOD, 180 DGR CABLE OUTLET 1 PACK = 1 PCS
|
|
14
|
کابل شبکه FIBER OPTIC
|
6XV1820-5AH10
|
SIMATIC NET, FIBER OPTIC CABLE STANDARD CABLE, SPLITTABLE W/O CONNECTOR.SOLD BY THE METER MAX. LENGTH: 2000 M MIN. LENGTH ORDERED: 20 M
|
|
15
|
باس کانکتور شبکه FIBER OPTIC BFOC CONNECTOR
|
6GK1901-0DA20-0AA0
|
SET OF 20 BFOC CONNECTORS FOR FIBER OPTIC CABLE, STANDARD AND TRAILING TYPE CABLE, INDOOR AND MARINE APPROVED CABLE. ATTENTION: MOUNTING BY SPECIALLY TRAINED PERSONNEL A. WITH SPECIAL TOOLS ONLY!
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
20-PIN فرانت کانکتور سيمبندي
|
6ES7392-1AJ00-0AA0
|
SIMATIC S7-300, FRONT CONNECTOR FOR SIGNAL MODULES WITH SCREW CONTACTS, 20-PIN
|
|
2
|
40-PIN فرانت کانکتور سيمبندي
|
6ES7392-1AM00-0AA0
|
SIMATIC S7-300, FRONT CONNECTOR 392 WITH SCREW CONTACTS, 40-PIN
|
|
3
|
کارت حافظه (16KB) تيپ قديم S7-300
|
6ES7951-0KD00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 16 KBYTES
|
|
4
|
کارت حافظه (32KB) تيپ قديم S7-300
|
6ES7951-0KE00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 32 KBYTES
|
|
5
|
کارت حافظه (64KB) تيپ قديم S7-300
|
6ES7951-0KF00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 64 KBYTES
|
|
6
|
کارت حافظه (128KB) تيپ قديم S7-300
|
6ES7951-0KG00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 128 KBYTES
|
|
7
|
کارت حافظه (512KB) تيپ قديم S7-300
|
6ES7951-0KJ00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 512 KBYTES
|
|
8
|
کارت حافظه (64KB)
|
6ES7953-8LF20-0AA0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت حافظه (128KB)
|
6ES7953-8LG11-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 128 KBYTES
|
|
10
|
کارت حافظه (512KB)
|
6ES7953-8LJ20-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 512 KBYTES
|
|
11
|
کارت حافظه (2MB)
|
6ES7953-8LL20-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 2 MBYTES
|
|
12
|
کارت حافظه (4MB)
|
6ES7953-8LM20-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 4 MBYTES
|
|
13
|
کارت حافظه (8MB)
|
6ES7953-8LP20-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 8 MBYTES
|
|
14
|
ريل (160MM)
|
6ES7390-1AB60-0AA0
|
SIMATIC S7-300, RAIL L = 160MM
|
|
15
|
ريل (480MM)
|
6ES7390-1AE80-0AA0
|
SIMATIC S7-300, RAIL L = 480MM
|
|
16
|
ريل (530MM)
|
6ES7390-1AF30-0AA0
|
SIMATIC S7-300, RAIL L = 530MM
|
|
17
|
ريل (830MM)
|
6ES7390-1AJ30-0AA0
|
SIMATIC S7-300, RAIL L = 830MM
|
|
|
ديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
CPU 312
|
6ES7312-1AE13-0AB0
|
SIMATIC S7-300, CPU 312 CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY 32 KBYTE WORKING MEMORY MICRO MEMORY CARD NECESSARY
|
|
2
|
CPU 312C
|
6ES7312-5BE03-0AB0
|
SIMATIC S7-300, CPU 312C COMPACT CPU WITH MPI, 10 DI/6 DO, 2 FAST COUNTERS (10 KHZ), INTEGRATED 24V DC POWER SUPPLY, 32 KBYTE WORKING MEMORY, FRONT CONNECTOR (1 × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
3
|
CPU 313C
|
6ES7313-5BF03-0AB0
|
SIMATIC S7-300, CPU 313C COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO 1 PT100, 3 FAST COUNTERS (30 KHZ), INTEGRATED 24V DC POWER SUPPLY, 64 KBYTE WORKING MEMORY, FRONT CONNECTOR (2 × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
4
|
CPU 313C-2DP
|
6ES7313-6CF03-0AB0
|
SIMATIC S7-300, CPU 313C-2DP COMPACT CPU WITH MPI, 16 DI/16 DO, 3 FAST COUNTERS (30 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 64 KBYTE WORKING MEMORY, FRONT CONNECTOR (1 × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
5
|
CPU 314
|
6ES7314-1AG13-0AB0
|
SIMATIC S7-300, CPU 314 CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY96 KBYTE WORKING MEMORY MICRO MEMORY CARD NECESSARY
|
|
6
|
CPU 314C-2DP
|
6ES7314-6CG03-0AB0
|
SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 96KBYTE WORKING MEMORY, FRONT CONNECTOR ( × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
7
|
CPU 315-2DP
|
6ES7315-2AG10-0AB0
|
SIMATIC S7-300, CPU 315-2DP CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY 128 KBYTE WORKING MEMORY 2 INTERFACE DP-MASTER/SLAVE MICRO MEMORY CARD NECESSARY
|
|
8
|
CPU 315-2PN-DP
|
6ES7315-2EH13-0AB0
|
SIMATIC S7-300 CPU 315-2 PN/DP, CENTRAL PROCESSING UNIT WITH 256 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY
|
|
9
|
CPU315F-2 PN/DP
|
6ES7315-2FH13-0AB0
|
SIMATIC S7-300 CPU315F-2 PN/DP, CENTRAL PROCESSING UNIT WITH 256 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFCE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY USEABLE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.4 OR HIGHER
|
|
10
|
CPU 315T-2 DP
|
6ES7315-6TH13-0AB0
|
SIMATIC S7-300, CPU 315T-2 DP, CENTRAL PROCESSING UNIT FOR PLC AND TECHNOLOGY 128 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S 2. INTERFACE DP(DRIVE) INTEGRATED I/O FOR TECHNOLOGY FRONT CONNECTOR (1 × 40PIN) AND
|
|
11
|
CPU 315F
|
6ES7315-6FF01-0AB0
|
SIMATIC S7-300, CPU 315F CENTRAL UNIT FOR S7-300F, 192 KB WORKING MEM., 40MM WIDE, 384 BYTES PAE/384 BYTES PAA, INTERFACES: 1 MPI/DP UND 1 DP INTEGRATED 24V DC POWER SUPPLY, MICRO MEMORY CARD REQUIRED
|
|
12
|
CPU 317-2DP
|
6ES7317-2AJ10-0AB0
|
SIMATIC S7-300, CPU 317-2DP, CENTRAL PROCESSING UNIT WITH 512 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, MICRO MEMORY CARD NECESSARY
|
|
13
|
CPU 318-2 DP
|
6ES7318-2AJ00-0AB0
|
SIMATIC S7-300, CPU 318-2 DP 512 KBYTE USER MEMORY (256 KB CODE; 256 KB DATA 1ST INTERF = MPI 12 MBIT/S; 2ND INTERF = PROFIBUS DP
|
|
14
|
CPU 317-2PN-DP
|
6ES7317-2EK13-0AB0
|
SIMATIC S7-300 CPU 317-2 PN/DP, CENTRAL PROCESSING UNIT WITH 1MB WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY
|
|
15
|
CPU 317T-2 DP
|
6ES7317-6TK13-0AB0
|
SIMATIC S7-300, CPU 317T-2 DP, CENTRAL PROCESSING UNIT FOR PLC AND TECHNOLOGY 512 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S 2. INTERFACE DP(DRIVE), INTEGRATED I/O FOR TECHNOLOGY FRONT CONNECTOR (1 × 40PIN) AND MICRO MEMORY CARD MIN. 4MB NECESSARY
|
|
16
|
CPU 317F-2DP
|
6ES7317-6FF03-0AB0
|
SIMATIC S7-300, CPU 317F-2DP, CENTRAL PROCESSING UNIT WITH 1024 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFWARE OPTION S7 DISTRIBUTED SAFETY V5.2 SP1 AND HIGHER
|
|
17
|
CPU317F-2 PN/DP
|
6ES7317-2FK13-0AB0
|
SIMATIC S7-300 CPU31F-2 PN/DP, CENTRAL PROCESSING UNIT WITH 1024 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.4 OR HIGHER
|
|
18
|
CPU319-3 PN/DP
|
6ES7318-3EL00-0AB0
|
SIMATIC S7-300 CPU 319-3 PN/DP, CENTRAL PROCESSING UNIT WITH 1,4 MBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, 3. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY
|
|
19
|
CPU319F-3 PN/DP
|
6ES7318-3FL00-0AB0
|
SIMATIC S7-300 CPU319F-3 PN/DP, CENTRAL PROCESSING UNIT WITH 1400 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, 3. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.4 SP3 OR HIGHER
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کارت ورودي 16 تايي ديجيتال (SM 321)
|
6ES7321-1BH02-0AA0
|
SIMATIC S7-300, DIGITAL INPUT SM 321, OPTICALLY ISOLATED, 16DI, 24 V DC, 20 PIN
|
|
2
|
کارت ورودي 32 تايي ديجيتال (SM 321)
|
6ES7321-1BL00-0AA0
|
SIMATIC S7-300, DIGITAL INPUT SM 321, OPTICALLY ISOLATED 32DI, 24 V DC (1 × 32 DI), 40 PIN
|
|
3
|
کارت خروجي 8 تايي ديجيتال (SM 322)
|
6ES7322-1BF01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 8 DO, 24V DC, 2A, 20 PIN
|
|
4
|
کارت خروجي 16 تايي ديجيتال (SM 322)
|
6ES7322-1BH01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 16 DO, 24V DC, 0.5A, 20 PIN
|
|
5
|
کارت خروجي 32 تايي ديجيتال (SM 322)
|
6ES7322-1BL00-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 32 DO, 24V DC, 0.5A, 40 PIN, SUM OF OUTPUT CURRENTS 8A
|
|
6
|
کارت خروجي 8 تايي رله (SM 322)
|
6ES7322-1HF01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 8 DO (RELAY OUTPUTS), 20 PIN, 24V DC, 2A OR 230V AC, 2A
|
|
7
|
کارت خروجي 16 تايي رلهاي (SM 322)
|
6ES7322-1HH01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED 16DO, RELAY CONTACTS, (2 × 8 DO) 20 PIN
|
|
8
|
کارت خروجي 8 تايي رلهاي (SM 322)
|
6ES7322-5HF00-0AB0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت 8 ورودي/8 خروجي ديجيتال (SM 323)
|
6ES7323-1BH01-0AA0
|
SIMATIC S7-300, DIGITAL MODULE SM 323, OPTICALLY ISOLATED, 8 DI AND 8 DO, 24V DC, 0.5A AGGREGATE CURRENT 2A, 20 PIN
|
|
10
|
کارت 16 ورودي/16 خروجي ديجيتال (SM 323)
|
6ES7323-1BL00-0AA0
|
SIMATIC S7-300, DIGITAL MODULE SM 323, OPTICALLY ISOLATED, 16 DI AND 16 DO, 24V DC, 0.5A, AGGREGATE CURRENT 4A, 40 PIN
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کارت 2 ورودي آنالوگ (SM 331)
|
6ES7331-7KB02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 2 AI, 9/12/14 BITS RESOLUTION, U/I/THERMOCOUPLE/RESISTANCE, INTERRUPT, DIAGNOSTICS, 20 PIN, REMOVE/INSERT W. BACKPLANE BUS
|
|
2
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-1KF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, 66 MS MODULE UPDATE, 40 PIN
|
|
3
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7KF02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, U/I/THERMOCOUPLE/RESISTANCE INTERRUPT, DIAGNOSTICS; RESOLUTION 9/12/14 BITS, 8AI, REMOVE/INSERT W. BACKPLANE BUS, 20 PIN
|
|
4
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPT. ISOL.,2/3/4 WIRE, 8AI, RESISTANCE, PT100/200/1000 NI100/120/200/500/1000, CU10, PLUS CHARACTERISTICS ACCORDING TO GOST STANDARD 16 (INTERN 24) BIT, 50MS, 40 PIN
|
|
5
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF11-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATATED, 8 AI THERMOCOUPLE, TYPE B, E, J, K, L, N, R, S, T 16 BIT, 50 MS, 40 PIN
|
|
6
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7HF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, GALVANICALLY ISOLATED, 8 AI, 14 BIT, 0.052MS/CHANNEL, CURRENT, VOLTAGE, INTERRUPTS, DIAGNOSTICS, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR
|
|
7
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF00-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AE; +/-5/10V, 1-5 V, +/-20MA, 0/4 TO 20MA, 16 BIT (55 MS), 1 COMMON POINT(50 V COM.), 40 PIN
|
|
8
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF10-0AB0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7332-7ND02-0AB0
|
SIMATIC S7, SM 332 ANALOG OUTPUT CHANNEL TO CHANNEL ISOLATION, 4 AO, 16 BIT RESOLUTION, 0-10V, 1-5V, +/- 10V, +/-20MA, 0/4 - 20MA, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR ISOCHRONE MODE
|
|
10
|
کارت 2 خروجي آنالوگ (SM 332)
|
6ES7332-5HB01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 2 AO, U/I; 11/12 BITS RESOL., 20 PIN., REMOVE/INSERT WITH ACTIVE BACKPLANE BUS
|
|
11
|
کارت 4 خروجي آنالوگ (SM 332)
|
6ES7332-5HD01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 4 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 20 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
12
|
کارت 8 خروجي آنالوگ (SM 332)
|
6ES7332-5HF00-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
13
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0CE01-0AA0
|
SIMATIC S7, ANALOG INPUT/OUTPUT SM 334, NON-ISOLATED, 4 AI/2 AO, 20-POLIG, REMOVE AND INSERT WITH BACKPLAIN BUS
|
|
14
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0KE00-0AB0
|
SIMATIC S7-300, ANALOG MODULE SM 334, OPTICALLY ISOLATED, 4AE/2AA, 12 BIT, 0-10V F. PT100 (CLIMAT RANGE - 120 - 155 DEGR) AND 10 KOHM MEASURING RANGE, 20 PIN
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کارت 2 ورودي آنالوگ (SM 331)
|
6ES7331-7KB02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 2 AI, 9/12/14 BITS RESOLUTION, U/I/THERMOCOUPLE/RESISTANCE, INTERRUPT, DIAGNOSTICS, 20 PIN, REMOVE/INSERT W. BACKPLANE BUS
|
|
2
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-1KF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, 66 MS MODULE UPDATE, 40 PIN
|
|
3
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7KF02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, U/I/THERMOCOUPLE/RESISTANCE INTERRUPT, DIAGNOSTICS; RESOLUTION 9/12/14 BITS, 8AI, REMOVE/INSERT W. BACKPLANE BUS, 20 PIN
|
|
4
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPT. ISOL.,2/3/4 WIRE, 8AI, RESISTANCE, PT100/200/1000 NI100/120/200/500/1000, CU10, PLUS CHARACTERISTICS ACCORDING TO GOST STANDARD 16 (INTERN 24) BIT, 50MS, 40 PIN
|
|
5
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF11-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATATED, 8 AI THERMOCOUPLE, TYPE B, E, J, K, L, N, R, S, T 16 BIT, 50 MS, 40 PIN
|
|
6
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7HF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, GALVANICALLY ISOLATED, 8 AI, 14 BIT, 0.052MS/CHANNEL, CURRENT, VOLTAGE, INTERRUPTS, DIAGNOSTICS, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR
|
|
7
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF00-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AE; +/-5/10V, 1-5 V, +/-20MA, 0/4 TO 20MA, 16 BIT (55 MS), 1 COMMON POINT(50 V COM.), 40 PIN
|
|
8
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF10-0AB0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7332-7ND02-0AB0
|
SIMATIC S7, SM 332 ANALOG OUTPUT CHANNEL TO CHANNEL ISOLATION, 4 AO, 16 BIT RESOLUTION, 0-10V, 1-5V, +/- 10V, +/-20MA, 0/4 - 20MA, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR ISOCHRONE MODE
|
|
10
|
کارت 2 خروجي آنالوگ (SM 332)
|
6ES7332-5HB01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 2 AO, U/I; 11/12 BITS RESOL., 20 PIN., REMOVE/INSERT WITH ACTIVE BACKPLANE BUS
|
|
11
|
کارت 4 خروجي آنالوگ (SM 332)
|
6ES7332-5HD01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 4 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 20 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
12
|
کارت 8 خروجي آنالوگ (SM 332)
|
6ES7332-5HF00-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
13
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0CE01-0AA0
|
SIMATIC S7, ANALOG INPUT/OUTPUT SM 334, NON-ISOLATED, 4 AI/2 AO, 20-POLIG, REMOVE AND INSERT WITH BACKPLAIN BUS
|
|
14
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0KE00-0AB0
|
SIMATIC S7-300, ANALOG MODULE SM 334, OPTICALLY ISOLATED, 4AE/2AA, 12 BIT, 0-10V F. PT100 (CLIMAT RANGE - 120 - 155 DEGR) AND 10 KOHM MEASURING RANGE, 20 PIN
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
CP 340, RS232C INTERFACE
|
6ES7340-1AH02-0AE0
|
SIMATIC S7-300, CP 340 COMMUNICATION PROCESSOR WITH RS232C INTERFACE (7.24) INCL. CONFIG. PACKAGE ON CD
|
|
2
|
CP 340, RS422/485 INTERFACE
|
6ES7340-1CH02-0AE0
|
SIMATIC S7-300, CP 340 COMMUNICATION PROCESSOR WITH RS422/485 INTERFACE INCL. CONFIG. PACKAGE ON CD
|
|
3
|
CP 341, RS232C INTERFACE
|
6ES7341-1AH01-0AE0
|
SIMATIC S7-300, CP 341 COMMUNICATION PROCESSOR WITH RS232C INTERFACE (7.24) INCL. CONFIG. PACKAGE ON CD
|
|
4
|
CP 341, RS422/485 INTERFACE
|
6ES7341-1CH01-0AE0
|
SIMATIC S7-300, CP 341 COMMUNICATION PROCESSOR WITH RS422/485 INTERFACE INCL. CONFIG. PACKAGE ON CD
|
|
5
|
کارت شبکه CP 342, AS-INTERFACE
|
6GK7343-2AH01-0XA0
|
SIMATIC NET, CP 343-2 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 AND ET200M TO AS-INTERFACE ACC. TO EXTENDED AS-INTERFACE MASTER PROFILE M0E/M1E. (W/O FRONT CONNECTOR)
|
|
6
|
کارت شبکه CP 342-5, PROFIBUS-DP
|
6GK7342-5DA02-0XE0
|
SIMATIC NET, CP 342-5 COMMUNICATIONS PROCESSOR FOR CONNECTING SIMATIC S7-300 TO PROFIBUS, DP, S5-COMPATIBLE PG/OP AND S7 COMMUNICATION
|
|
7
|
کارت شبکه CP 343-5, PROFIBUS-DP
|
6GK7343-5FA01-0XE0
|
SIMATIC NET, CP 343-5 COMMUNICATIONS PROCESSOR FOR CONNECTING SIMATIC S7-300 TO PROFIBUS, FMS, S5-COMPATIBLE PG/OP AND S7 COMMUNICATION 12 MBAUD, SINGLE-WIDTH
|
|
8
|
کارت شبکه CP 343-1, ETHERNET
|
6GK7343-1EX11-0XE0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت شبکه CP 343-1, ETHERNET
|
6GK7343-1EX21-0XE0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET VIA PROFINET IO CONTROLLEER, ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANS., MULTICAST LOADABLE COMMUNICATION BLOCS, SNMP DIAGNOSIS, INITIALIZATION VIA LAN DHCP, NTP-CPU SYNC, 10/100 MBIT, ONLY RJ45 CONNECTIONMBIT, ONLY RJ45 CONNECTION
|
|
8
|
کارت شبکه CP 343-1, ETHERNET
|
6GK7343-1EX30-0XE0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
10
|
کارت شبکه CP 343-1IT, ETHERNET
|
6GK7343-1GX21-0XE0
|
SIMATIC NET, CP 343-1IT COMMUNICATIONS PROCESSOR FOR CONNECTIING SIMATIC S7-300 TO IND. ETHERNET USING TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC, MULTICAST, HTML DIAGNOSIS, FTP CLIENT, PBK, NTP-CPU SYNC, SNMP, DHCP, E-MAIL, WWW,
|
|
11
|
MODBUS MASTER V3.1 WITH SW AND DOCU.
|
6ES7870-1AA01-0YA0
|
SIMATIC S7, MODBUS MASTER V3.1 SINGLE LICENSE F.1 INSTALLATION R-SW, SW AND DOCU. ON CD, HW-DONGLE, CLASS A, 3 LANGUAGES (G, E, F), EXECUTABLE U. STEP7 FROM V4.2, REFERENCE-HW: CP341 AND CP441-2
|
|
12
|
MODBUS SLAVE 73.1 ITH SW AND DOCU.
|
6ES7870-1AB01-0YA0
|
SIMATIC S7, MODBUS SLAVE V3.1 SINGLE LICENSE F.1 INSTALLATION R-SW, SW AND DOCU. ON CD, HW-DONGLE, CLASS A, 3 LANGUAGES (G, E, F), EXECUTABLE U. STEP7 FROM V4.2, REFERENCE-HW: CP341 AND CP441-2
|
|
13
|
IE SOFTNET-S7/2005
|
6GK1704-1CW64-3AA0
|
SIMATIC NET IE SOFTNET-S7/2005 SW F. S7, S5 COMP. COMMUN., OPC, PG/OP COMM., NCM PC, UP TO 64 C. SINGLE LICENSE F.1 INSTALLATION RT SW, SW + ELECTR. MANUAL ON CD LICENSE KEY ON FD, CLASS A, 2 LANG. (GER, EN); FOR 32 BITS WINDOWS XP PRO, 2000 PRO/SV, WINDOWS 2003 SERVER; FOR CP 1512 / CP 1612/ CP7515
|
|
14
|
PB SOFTNET-S7/2005
|
6GK1704-5CW64-3AA0
|
SIMATIC NET PB SOFTNET -S7 2005 SW F. S7 COMMUN. INCL. FDL W. OPC SERVER AND NCM PC; SINGLE LICENSE F.1 INSTALLATION RT SW, SW + ELECTR. MANUAL ON CD LICENSE KEY ON FD, CLASS A 2 LANG. (G, E); F. 32 BITS WIN XP PRO, 2000 PRO/SV; WIN 2003 SERVER; FOR CP5511/ CP5512/ CP5611
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
منبع تغذيه تکفاز 2A تيپ S7-300
|
6ES7307-1BA00-0AA0
|
SIMATIC S7-300, LOAD POWER SUPP. PS 307, 120/230 V AC, 24 V DC, 2 A
|
|
2
|
منبع تغذيه تکفاز 5A تيپ S7-300
|
6ES7307-1EA00-0AA0
|
SIMATIC S7-300, LOAD POWER SUPP. PS 307, 120/230 V AC, 24 V DC, 5 A
|
|
3
|
منبع تغذيه تکفاز 10A تيپ S7-300
|
6ES7307-1KA01-0AA0
|
SIMATIC S7-300, POWER SUPPLY PS 307, 120/230 V AC; 24 V DC, 10 A
|
|
4
|
منبع تغذيه تکفاز 5A. تيپ SITOP
|
6EP1331-2BA10
|
SITOP POWER STABILIYED LOAD POWER SUPPLY INPUT 120/230 VAC OUTPUT 24V DC 0.5A
|
|
5
|
منبع تغذيه تکفاز 2A تيپ SITOP
|
6EP1332-2BA10
|
SITOP POWER 2 STABILIZED LOAD POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/ 2 A DC
|
|
6
|
منبع تغذيه تکفاز و دو فاز 5A تيپ SITOP
|
6EP1333-3BA00
|
SITOP MODULAR STABILIZED LOAD POWER SUPPLY INPUT: 120 AC/230 - 500V OUTPUT: 24V DC/5 A
|
|
7
|
منبع تغذيه تکفاز 5A تيپ SITOP
|
6EP1333-2AA01
|
SITOP POWER 5 STABILIZED POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/ 5 A INDUSTRIAL VERSION
|
|
8
|
منبع تغذيه تکفاز و دو فاز 10A تيپ SITOP
|
6EP1334-3BA00
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
منبع تغذيه تکفاز 10A تيپ SITOP
|
6EP1334-2AA01
|
SITOP POWER 10 STABILIZED POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/ 10 A INDUSTRIAL VERSION
|
|
10
|
منبع تغذيه تکفاز 20A تيپ SITOP
|
6EP1336-3BA00
|
SITOP MODULAR STABILIZED LOAD POWER SUPPLY, INPUT: 120/230 V AC, OUTPUT: 24 V DC/20 A
|
|
11
|
منبع تغذيه سه فاز 20A تيپ SITOP
|
6EP1436-3BA00
|
SITOP MODULAR 20 STABILIZED LOAD POWER SUPPLY INPUT: 3-PH. 400-500V AC OUTPUT: 24V DC / 20 A
|
|
12
|
منبع تغذيه سه فاز 40A تيپ SITOP
|
6EP1437-3BA00
|
SITOP MODULAR 40 STABILIZED LOAD POWER SUPPLY INPUT: 3-PH. 400-500V AC OUTPUT: 24 V DC / 40 A
|
|
13
|
منبع تغذيه تکفاز 1.9A تيپ SITOP (15VDC)
|
6EP1351-1SH02
|
LOGO!POWER 15V STABILIZED POWER SUPPLY INPUT: 100-240 V AC OUTPUT: 15 V DC/ 1.9 A
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کابل شبکه PROFIBUS
|
6XV1830-0EH10
|
SIMATIC NET, PB FC STANDARD, BUS CABLE, 2-WIRE, SHIELDED, SPECIAL DESIGN FOR RAPID INSTALLATION, MAX. CONSIGNMENT: 1000 M, MIN. ORDERING QUANTITY: 20 M SOLD BY THE METER
|
|
2
|
باس کانکتور شبکه PROFIBUS يکطرفه 90 درجه
|
RES7972-0BA12-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 90 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 15,8 × 54 × 34 MM TERMINAT. RESIST. WITH ISOLAT. FUNCTION, WITHOUT PG SOCKET
|
|
3
|
باس کانکتور شبکه PROFIBUS يکطرفه 35 درجه
|
6ES7972-0BA41-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S WITH TILTED OUTGOING CABLE, (W × H × D): 16 × 54 × 34 MM TERMINAT. RESIST. WITH ISOLAT. FUNCTION, WITHOUT PG SOCKET
|
|
4
|
باس کانکتور شبکه PROFIBUS دوطرفه 90 درجه
|
6ES7972-0BB12-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 90 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 15.8 × 54 × 34 MM TERMINAT. RESIST. WITH ISOLAT. FUNCTION, WITH PG SOCKET
|
|
5
|
باس کانکتور شبکه PROFIBUS دوطرفه 35 درجه
|
6ES7972-0BB41-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S WITH TILTED OUTGOING CABLE, (W × H × D): 16 × 54 × 34 MM TERMINAT. RESIST. WITH ISOLAT. FUNCTION, WITH PG SOCKET
|
|
6
|
باس کانکتور شبکه PROFIBUS 90 درجه FAST CONNECT
|
6ES7972-0BA51-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 90 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 16 × 72; 7 × 34 MM IPCD TECHOLOGY FAST CONNECT, WITHOUT PG SOCKET
|
|
7
|
باس کانکتور شبکه PROFIBUS 90 درجه FAST CONNECT
|
6ES7972-0BB51-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 90 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 16 × 72,7 × 34 MM IPCD TECHOLOGY FAST CONNECT, WITH PG SOCKET
|
|
8
|
باس کانکتور شبکه PROFIBUS يک طرفه 35 درجه
|
6ES7972-0BA60-0XA0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
باس کانکتور شبکه PROFIBUS دوطرفه 35 درجه
|
6ES7972-0BB60-0XA0
|
SIMATIC DP, BUS CONNECTOR FOR PROFIBUS UP TO 12 MBIT/S 35 DEGREE ANGLE OUTGOING CABLE, (W × H × D): 16 × 72.7 × 34 MM IPCD TECHOLOGY FAST CONNECT, WITH PG SOCKET
|
|
10
|
باس کانکتور شبکه PROFIBUS يک طرفه 180 درجه
|
6GK1500-0EA02
|
SIMATIC NET, PB BUS CONNECTOR WITH AXIAL CABLE OUTLET F.INDUSTR. PC, SIMATIC OP, OLM; TRANSMISSION RATE 12MBIT/S; TERMINATING RESISTOR WITH SEPAR. FUNCTION
|
|
11
|
باس کانکتور شبکه PROFIBUS يک طرفه 180 درجه
|
6GK1500-0FC00
|
SIMATIC NET, PB FC RS 485 PLUG 180, PB CONNECTOR W. FASTCONNECT CONNECTOR A. AXIAL CABLE OUTLET FOR INDUSTRIAL PC'S, SIMATIC OP, OLM, TRANSFER RATE 12 MBIT/S TERMINATING RESISTOR WITH SEPARAT. FUNCTION
|
|
12
|
کابل شبکه ETHERNET
|
6XV1840-2AH10
|
SIMATIC NET, IE FC TP STANDARD CABLE, TP INSTALLATION CABLE FOR CONNECTION TO FC OUTLET RJ45, FOR UNIVERSAL APPLICATION, 4-WIRE, SHIELDED, CAT. 5, SOLD BY THE METER MAX CONSIGNMENT: 1000 M, MIN. ORDERING QUANTITY: 20 M
|
|
13
|
باس کانکتور شبکه ETHERNET RJ45 PLUG 180
|
6GK1901-1BB10-2AA0
|
SIMATIC NET IE FC RJ45 PLUG 180 RJ45 PLUG CONNECTOR W. RUGGED METAL HOUSING AND FC CONNECTING METHOD, 180 DGR CABLE OUTLET 1 PACK = 1 PCS
|
|
14
|
کابل شبکه FIBER OPTIC
|
6XV1820-5AH10
|
SIMATIC NET, FIBER OPTIC CABLE STANDARD CABLE, SPLITTABLE W/O CONNECTOR.SOLD BY THE METER MAX. LENGTH: 2000 M MIN. LENGTH ORDERED: 20 M
|
|
15
|
باس کانکتور شبکه FIBER OPTIC BFOC CONNECTOR
|
6GK1901-0DA20-0AA0
|
SET OF 20 BFOC CONNECTORS FOR FIBER OPTIC CABLE, STANDARD AND TRAILING TYPE CABLE, INDOOR AND MARINE APPROVED CABLE. ATTENTION: MOUNTING BY SPECIALLY TRAINED PERSONNEL A. WITH SPECIAL TOOLS ONLY!
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
20-PIN فرانت کانکتور سيمبندي
|
6ES7392-1AJ00-0AA0
|
SIMATIC S7-300, FRONT CONNECTOR FOR SIGNAL MODULES WITH SCREW CONTACTS, 20-PIN
|
|
2
|
40-PIN فرانت کانکتور سيمبندي
|
6ES7392-1AM00-0AA0
|
SIMATIC S7-300, FRONT CONNECTOR 392 WITH SCREW CONTACTS, 40-PIN
|
|
3
|
کارت حافظه (16KB) تيپ قديم S7-300
|
6ES7951-0KD00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 16 KBYTES
|
|
4
|
کارت حافظه (32KB) تيپ قديم S7-300
|
6ES7951-0KE00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 32 KBYTES
|
|
5
|
کارت حافظه (64KB) تيپ قديم S7-300
|
6ES7951-0KF00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 64 KBYTES
|
|
6
|
کارت حافظه (128KB) تيپ قديم S7-300
|
6ES7951-0KG00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 128 KBYTES
|
|
7
|
کارت حافظه (512KB) تيپ قديم S7-300
|
6ES7951-0KJ00-0AA0
|
SIMATIC S7, MEMORY CARD FOR S7-300, SHORT VERSION 5V FLASH EPROM, 512 KBYTES
|
|
8
|
کارت حافظه (64KB)
|
6ES7953-8LF20-0AA0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت حافظه (128KB)
|
6ES7953-8LG11-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 128 KBYTES
|
|
10
|
کارت حافظه (512KB)
|
6ES7953-8LJ20-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 512 KBYTES
|
|
11
|
کارت حافظه (2MB)
|
6ES7953-8LL20-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 2 MBYTES
|
|
12
|
کارت حافظه (4MB)
|
6ES7953-8LM20-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 4 MBYTES
|
|
13
|
کارت حافظه (8MB)
|
6ES7953-8LP20-0AA0
|
SIMATIC S7, MICRO MEMORY CARD F. S7-300/C7/ET 200S IM151 CPU, 3.3 V NFLASH, 8 MBYTES
|
|
14
|
ريل (160MM)
|
6ES7390-1AB60-0AA0
|
SIMATIC S7-300, RAIL L = 160MM
|
|
15
|
ريل (480MM)
|
6ES7390-1AE80-0AA0
|
SIMATIC S7-300, RAIL L = 480MM
|
|
16
|
ريل (530MM)
|
6ES7390-1AF30-0AA0
|
SIMATIC S7-300, RAIL L = 530MM
|
|
17
|
ريل (830MM)
|
6ES7390-1AJ30-0AA0
|
SIMATIC S7-300, RAIL L = 830MM
|
|
|
ديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
CPU 312
|
6ES7312-1AE13-0AB0
|
SIMATIC S7-300, CPU 312 CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY 32 KBYTE WORKING MEMORY MICRO MEMORY CARD NECESSARY
|
|
2
|
CPU 312C
|
6ES7312-5BE03-0AB0
|
SIMATIC S7-300, CPU 312C COMPACT CPU WITH MPI, 10 DI/6 DO, 2 FAST COUNTERS (10 KHZ), INTEGRATED 24V DC POWER SUPPLY, 32 KBYTE WORKING MEMORY, FRONT CONNECTOR (1 × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
3
|
CPU 313C
|
6ES7313-5BF03-0AB0
|
SIMATIC S7-300, CPU 313C COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO 1 PT100, 3 FAST COUNTERS (30 KHZ), INTEGRATED 24V DC POWER SUPPLY, 64 KBYTE WORKING MEMORY, FRONT CONNECTOR (2 × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
4
|
CPU 313C-2DP
|
6ES7313-6CF03-0AB0
|
SIMATIC S7-300, CPU 313C-2DP COMPACT CPU WITH MPI, 16 DI/16 DO, 3 FAST COUNTERS (30 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 64 KBYTE WORKING MEMORY, FRONT CONNECTOR (1 × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
5
|
CPU 314
|
6ES7314-1AG13-0AB0
|
SIMATIC S7-300, CPU 314 CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY96 KBYTE WORKING MEMORY MICRO MEMORY CARD NECESSARY
|
|
6
|
CPU 314C-2DP
|
6ES7314-6CG03-0AB0
|
SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 96KBYTE WORKING MEMORY, FRONT CONNECTOR ( × 40PIN) AND MICRO MEMORY CARD REQUIRED
|
|
7
|
CPU 315-2DP
|
6ES7315-2AG10-0AB0
|
SIMATIC S7-300, CPU 315-2DP CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY 128 KBYTE WORKING MEMORY 2 INTERFACE DP-MASTER/SLAVE MICRO MEMORY CARD NECESSARY
|
|
8
|
CPU 315-2PN-DP
|
6ES7315-2EH13-0AB0
|
SIMATIC S7-300 CPU 315-2 PN/DP, CENTRAL PROCESSING UNIT WITH 256 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY
|
|
9
|
CPU315F-2 PN/DP
|
6ES7315-2FH13-0AB0
|
SIMATIC S7-300 CPU315F-2 PN/DP, CENTRAL PROCESSING UNIT WITH 256 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFCE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY USEABLE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.4 OR HIGHER
|
|
10
|
CPU 315T-2 DP
|
6ES7315-6TH13-0AB0
|
SIMATIC S7-300, CPU 315T-2 DP, CENTRAL PROCESSING UNIT FOR PLC AND TECHNOLOGY 128 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S 2. INTERFACE DP(DRIVE) INTEGRATED I/O FOR TECHNOLOGY FRONT CONNECTOR (1 × 40PIN) AND
|
|
11
|
CPU 315F
|
6ES7315-6FF01-0AB0
|
SIMATIC S7-300, CPU 315F CENTRAL UNIT FOR S7-300F, 192 KB WORKING MEM., 40MM WIDE, 384 BYTES PAE/384 BYTES PAA, INTERFACES: 1 MPI/DP UND 1 DP INTEGRATED 24V DC POWER SUPPLY, MICRO MEMORY CARD REQUIRED
|
|
12
|
CPU 317-2DP
|
6ES7317-2AJ10-0AB0
|
SIMATIC S7-300, CPU 317-2DP, CENTRAL PROCESSING UNIT WITH 512 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, MICRO MEMORY CARD NECESSARY
|
|
13
|
CPU 318-2 DP
|
6ES7318-2AJ00-0AB0
|
SIMATIC S7-300, CPU 318-2 DP 512 KBYTE USER MEMORY (256 KB CODE; 256 KB DATA 1ST INTERF = MPI 12 MBIT/S; 2ND INTERF = PROFIBUS DP
|
|
14
|
CPU 317-2PN-DP
|
6ES7317-2EK13-0AB0
|
SIMATIC S7-300 CPU 317-2 PN/DP, CENTRAL PROCESSING UNIT WITH 1MB WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY
|
|
15
|
CPU 317T-2 DP
|
6ES7317-6TK13-0AB0
|
SIMATIC S7-300, CPU 317T-2 DP, CENTRAL PROCESSING UNIT FOR PLC AND TECHNOLOGY 512 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S 2. INTERFACE DP(DRIVE), INTEGRATED I/O FOR TECHNOLOGY FRONT CONNECTOR (1 × 40PIN) AND MICRO MEMORY CARD MIN. 4MB NECESSARY
|
|
16
|
CPU 317F-2DP
|
6ES7317-6FF03-0AB0
|
SIMATIC S7-300, CPU 317F-2DP, CENTRAL PROCESSING UNIT WITH 1024 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFWARE OPTION S7 DISTRIBUTED SAFETY V5.2 SP1 AND HIGHER
|
|
17
|
CPU317F-2 PN/DP
|
6ES7317-2FK13-0AB0
|
SIMATIC S7-300 CPU31F-2 PN/DP, CENTRAL PROCESSING UNIT WITH 1024 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.4 OR HIGHER
|
|
18
|
CPU319-3 PN/DP
|
6ES7318-3EL00-0AB0
|
SIMATIC S7-300 CPU 319-3 PN/DP, CENTRAL PROCESSING UNIT WITH 1,4 MBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, 3. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY
|
|
19
|
CPU319F-3 PN/DP
|
6ES7318-3FL00-0AB0
|
SIMATIC S7-300 CPU319F-3 PN/DP, CENTRAL PROCESSING UNIT WITH 1400 KBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, 3. INTERFACE ETHERNET PROFINET, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.4 SP3 OR HIGHER
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کارت ورودي 16 تايي ديجيتال (SM 321)
|
6ES7321-1BH02-0AA0
|
SIMATIC S7-300, DIGITAL INPUT SM 321, OPTICALLY ISOLATED, 16DI, 24 V DC, 20 PIN
|
|
2
|
کارت ورودي 32 تايي ديجيتال (SM 321)
|
6ES7321-1BL00-0AA0
|
SIMATIC S7-300, DIGITAL INPUT SM 321, OPTICALLY ISOLATED 32DI, 24 V DC (1 × 32 DI), 40 PIN
|
|
3
|
کارت خروجي 8 تايي ديجيتال (SM 322)
|
6ES7322-1BF01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 8 DO, 24V DC, 2A, 20 PIN
|
|
4
|
کارت خروجي 16 تايي ديجيتال (SM 322)
|
6ES7322-1BH01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 16 DO, 24V DC, 0.5A, 20 PIN
|
|
5
|
کارت خروجي 32 تايي ديجيتال (SM 322)
|
6ES7322-1BL00-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 32 DO, 24V DC, 0.5A, 40 PIN, SUM OF OUTPUT CURRENTS 8A
|
|
6
|
کارت خروجي 8 تايي رله (SM 322)
|
6ES7322-1HF01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 8 DO (RELAY OUTPUTS), 20 PIN, 24V DC, 2A OR 230V AC, 2A
|
|
7
|
کارت خروجي 16 تايي رلهاي (SM 322)
|
6ES7322-1HH01-0AA0
|
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED 16DO, RELAY CONTACTS, (2 × 8 DO) 20 PIN
|
|
8
|
کارت خروجي 8 تايي رلهاي (SM 322)
|
6ES7322-5HF00-0AB0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت 8 ورودي/8 خروجي ديجيتال (SM 323)
|
6ES7323-1BH01-0AA0
|
SIMATIC S7-300, DIGITAL MODULE SM 323, OPTICALLY ISOLATED, 8 DI AND 8 DO, 24V DC, 0.5A AGGREGATE CURRENT 2A, 20 PIN
|
|
10
|
کارت 16 ورودي/16 خروجي ديجيتال (SM 323)
|
6ES7323-1BL00-0AA0
|
SIMATIC S7-300, DIGITAL MODULE SM 323, OPTICALLY ISOLATED, 16 DI AND 16 DO, 24V DC, 0.5A, AGGREGATE CURRENT 4A, 40 PIN
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کارت 2 ورودي آنالوگ (SM 331)
|
6ES7331-7KB02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 2 AI, 9/12/14 BITS RESOLUTION, U/I/THERMOCOUPLE/RESISTANCE, INTERRUPT, DIAGNOSTICS, 20 PIN, REMOVE/INSERT W. BACKPLANE BUS
|
|
2
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-1KF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, 66 MS MODULE UPDATE, 40 PIN
|
|
3
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7KF02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, U/I/THERMOCOUPLE/RESISTANCE INTERRUPT, DIAGNOSTICS; RESOLUTION 9/12/14 BITS, 8AI, REMOVE/INSERT W. BACKPLANE BUS, 20 PIN
|
|
4
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPT. ISOL.,2/3/4 WIRE, 8AI, RESISTANCE, PT100/200/1000 NI100/120/200/500/1000, CU10, PLUS CHARACTERISTICS ACCORDING TO GOST STANDARD 16 (INTERN 24) BIT, 50MS, 40 PIN
|
|
5
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF11-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATATED, 8 AI THERMOCOUPLE, TYPE B, E, J, K, L, N, R, S, T 16 BIT, 50 MS, 40 PIN
|
|
6
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7HF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, GALVANICALLY ISOLATED, 8 AI, 14 BIT, 0.052MS/CHANNEL, CURRENT, VOLTAGE, INTERRUPTS, DIAGNOSTICS, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR
|
|
7
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF00-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AE; +/-5/10V, 1-5 V, +/-20MA, 0/4 TO 20MA, 16 BIT (55 MS), 1 COMMON POINT(50 V COM.), 40 PIN
|
|
8
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF10-0AB0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7332-7ND02-0AB0
|
SIMATIC S7, SM 332 ANALOG OUTPUT CHANNEL TO CHANNEL ISOLATION, 4 AO, 16 BIT RESOLUTION, 0-10V, 1-5V, +/- 10V, +/-20MA, 0/4 - 20MA, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR ISOCHRONE MODE
|
|
10
|
کارت 2 خروجي آنالوگ (SM 332)
|
6ES7332-5HB01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 2 AO, U/I; 11/12 BITS RESOL., 20 PIN., REMOVE/INSERT WITH ACTIVE BACKPLANE BUS
|
|
11
|
کارت 4 خروجي آنالوگ (SM 332)
|
6ES7332-5HD01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 4 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 20 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
12
|
کارت 8 خروجي آنالوگ (SM 332)
|
6ES7332-5HF00-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
13
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0CE01-0AA0
|
SIMATIC S7, ANALOG INPUT/OUTPUT SM 334, NON-ISOLATED, 4 AI/2 AO, 20-POLIG, REMOVE AND INSERT WITH BACKPLAIN BUS
|
|
14
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0KE00-0AB0
|
SIMATIC S7-300, ANALOG MODULE SM 334, OPTICALLY ISOLATED, 4AE/2AA, 12 BIT, 0-10V F. PT100 (CLIMAT RANGE - 120 - 155 DEGR) AND 10 KOHM MEASURING RANGE, 20 PIN
|
|
|
رديف
|
نام قطعه
|
کد فني
|
مشخصات
|
|
1
|
کارت 2 ورودي آنالوگ (SM 331)
|
6ES7331-7KB02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 2 AI, 9/12/14 BITS RESOLUTION, U/I/THERMOCOUPLE/RESISTANCE, INTERRUPT, DIAGNOSTICS, 20 PIN, REMOVE/INSERT W. BACKPLANE BUS
|
|
2
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-1KF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, 66 MS MODULE UPDATE, 40 PIN
|
|
3
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7KF02-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, U/I/THERMOCOUPLE/RESISTANCE INTERRUPT, DIAGNOSTICS; RESOLUTION 9/12/14 BITS, 8AI, REMOVE/INSERT W. BACKPLANE BUS, 20 PIN
|
|
4
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPT. ISOL.,2/3/4 WIRE, 8AI, RESISTANCE, PT100/200/1000 NI100/120/200/500/1000, CU10, PLUS CHARACTERISTICS ACCORDING TO GOST STANDARD 16 (INTERN 24) BIT, 50MS, 40 PIN
|
|
5
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7PF11-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATATED, 8 AI THERMOCOUPLE, TYPE B, E, J, K, L, N, R, S, T 16 BIT, 50 MS, 40 PIN
|
|
6
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7HF01-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, GALVANICALLY ISOLATED, 8 AI, 14 BIT, 0.052MS/CHANNEL, CURRENT, VOLTAGE, INTERRUPTS, DIAGNOSTICS, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR
|
|
7
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF00-0AB0
|
SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AE; +/-5/10V, 1-5 V, +/-20MA, 0/4 TO 20MA, 16 BIT (55 MS), 1 COMMON POINT(50 V COM.), 40 PIN
|
|
8
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7331-7NF10-0AB0
|
SIMATIC NET, CP 343-1 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING ISO, TCP/IP AND UDP, S7 COMM., FETCH/WRITE, SEND/RECEIVE, WITH AND W/O RFC 1006, DIAGN. EXPANSIONS, MULTICAST, PBK, COMMISSIONING THROUGH LAN, 10/100 MB
|
|
9
|
کارت 8 ورودي آنالوگ (SM 331)
|
6ES7332-7ND02-0AB0
|
SIMATIC S7, SM 332 ANALOG OUTPUT CHANNEL TO CHANNEL ISOLATION, 4 AO, 16 BIT RESOLUTION, 0-10V, 1-5V, +/- 10V, +/-20MA, 0/4 - 20MA, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR ISOCHRONE MODE
|
|
10
|
کارت 2 خروجي آنالوگ (SM 332)
|
6ES7332-5HB01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 2 AO, U/I; 11/12 BITS RESOL., 20 PIN., REMOVE/INSERT WITH ACTIVE BACKPLANE BUS
|
|
11
|
کارت 4 خروجي آنالوگ (SM 332)
|
6ES7332-5HD01-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 4 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 20 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
12
|
کارت 8 خروجي آنالوگ (SM 332)
|
6ES7332-5HF00-0AB0
|
SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
|
|
13
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0CE01-0AA0
|
SIMATIC S7, ANALOG INPUT/OUTPUT SM 334, NON-ISOLATED, 4 AI/2 AO, 20-POLIG, REMOVE AND INSERT WITH BACKPLAIN BUS
|
|
14
|
کارت 4 ورودي/2 خروجي آنالوگ (SM 334)
|
6ES7334-0KE00-0AB0
|
SIMATIC S7-300, ANALOG MODULE SM 334, OPTICALLY ISOLATED, 4AE/2AA, 12 BIT, 0-10V F. PT100 (CLIMAT RANGE - 120 - 155 DEGR) AND 10 KOHM MEASURING RANGE, 20 PIN
|
|
